Microscope, Microscopy
BESTSCOPE: Digital Microscope

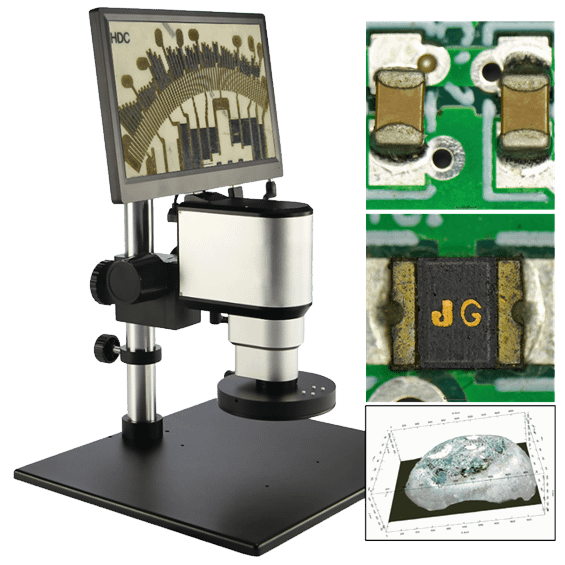

- Digital Microscopes replace conventional eyepieces for ease of observation, capturing and analysis of images and videos.
- BESTSCOPE offers Digital Microscopes that connect to PC/Laptop via USB and display monitors via HDMI in various ways depending on applications that include built-in cameras, external cameras with HDMI and, or USB connections.
- Digital Microscopes are used in PCB/PCB assemblies, Electrical and Electronics components, Semiconductor in package- and wafer- level, Stamping/Milling parts, material surfaces for Quality Assurance and, or Failure Analysis. It can also be used for circuit board repair, engraving, gemstone setting and biology.
- Digital Biological Microscope models are specifically designed for Biological, Biomedical, Life Science and Research with either built-in camera and, or with display or USB connection to a PC/Laptop with measurement and control features.
- Refer to Datasheet of various models below.
- BLM1-207S 7” LCD screen with adjustable angle and LED brightness. HDMI and USB ports. Base plate with double clips for samples. Support memory card recording and photography. Software with measurement features.
- BLM1-210 All-purpose 4K digital microscope for both high and low object distance. 10.1” True 4K UHD 60fps, high speed and high-resolution LCD screen with adjustable bracket. HDMI2.0 and USB 3.0 ports, supporting 4K 60fps video and audio recording. Remote control for microscope. Multiple light sources to provide brighter and clearer views; Top illuminator is a ring light with 8 LEDs, 2 universal LED lamps on metal base as side light and a bottom light with 1 LED lamp.
- BLM1-310A An UV lens equipped on microscope with high speed and high-resolution features 4.0MP built-in camera. 10.1” high-definition LCD screen with 180° adjustable angle. HDMI and USB ports. Remote control for microscope. Base specifically designed for cell-phone repair and electronics inspections. Stand equipped with 2 universal LED lamps with adjustable brightness. Software with measurement features./li>
- BLM1-370 Screen with adjustable tilting angle. Simultaneous USB and HDMI output. Adjustable zoom range of 0.7X-5X and 7:1 continuous magnification. Large stroke focusing mechanism provides wider workspace with a 225mm focusing range and working distance of 170mm.
- BLM1-380 Larger field of view for wider observation range; increased by more than 33% as compared to BLM1-370. Working distance of 0.5X objective shortens to 110mm. 2.0MP camera with 12” HD display, low image noise and high contrast ratio.
- BLM1-480 Apochromatic optical system with 4K ultra high resolution (3840 x 2160). Simultaneous HDMI and USB output. 0.3-3.0X standard zoom body, 1:10 large zoom ratio. Zoom modes; motorized and manual knob zoom. Smart cruise scanning (10 preset positions) with accurate magnification. Magnification and measurement in real-time. Support box selection and automatic edge finding for more accurate measurement. Software with advanced tools for imaging and measurement.
- BLM2-241 Digital Biological Microscope. Infinite optical system equipped with 10×/22mm eyepiece, infinite plan achromatic objectives, 6MP HDMI digital camera with measurement functions, 11.6” HD digital LCD screen and LED lighting system. Integrated magnification, digital enlarge, imaging display, photo and video capture and storage on SD card directly. USB port for PC/laptop with software for control and image analysis.
- BLM2-274 Digital Biological Microscope. NIS60 infinite Optical System equipped with infinite plan objectives providing high contrast, high resolution, high signal to noise ratio image and 22mm Wide Field of View. Eyepiece adopts a flat field distortion-free design. 6.0MP high sensitive camera and 11.6” 1080P full HD retina LCD screen. Integrated magnification, digital enlarge, imaging display, photo and video capture and storage on SD card directly. USB port for PC/laptop with software for control and image analysis. Multifunctional Universal Condenser for bright field, dark field and phase contrast that can be switched by changing the dark field and phase contrast slider. LED EPI-Fluorescent Illumination without the need for warm-up and cool-down.
- BS-2010MD/BD Built-in 1.3MP CMOS Digital Camera with USB port for connection to PC/Laptop. Adjustable LED illumination. Wide field eyepiece with Achromatic Objectives. Double Layers Mechanical Stage: 110mm x 120mm, Moving Range X-Y: 70mm x 20mm. Coaxial Coarse and Fine adjustments, moving range of 10mm. Software features include colour control, image processing and measurement tools.
- BS-2020MD/BD Built-in 1.3MP CMOS Digital Camera with USB port for connection to PC/Laptop. Adjustable S-LED illumination. Wide field eyepiece with Achromatic Objectives and Backward Quadruple Nosepiece. Double Layers Mechanical Stage: 132mm x 142mm, Moving Range X-Y: 75mm x 40mm. Coaxial Coarse and Fine adjustments. moving range of 24mm. Software features include colour control, image processing and measurement tools.
- 3D/Super-depth imaging with various observation modes, measurement functions and image processing. Automatic Frame Hovering and Angle Control; Built-in high-precision angle sensors, rotation from -90° to 90°, enables panoramic observation without tilting the sample. Integrated Controller Operation; Various shortcut keys for quick control functions that include, navigation, magnification switching, illumination mode selection, platform movement, automatic focusing, real-time depth synthesis, 2D/3D image stitching, glare elimination, High Dynamic Range (HDR) imaging, shake correction, storing of image/data. Large Travel and Rotation Angle Stage with 2 Operating Modes; In Rotational Priority Mode, stage movement range of 50mm x 50mm and ± 90 ° rotation. In Travel Priority Mode, Stage extends movement range to 100mm x 100mm. Integrated Multiple Illumination Modes; Integrated coaxial reflected illumination, coaxial oblique illumination, annular illumination, segmented annular illumination, mixed illumination, and LED transmitted illumination (for transparent samples). Flexible illumination solutions provide observation of samples with different attributes using various modes, bright field, dark field, MIX, polarized light, and Differential Interference Contrast (DIC). The unique four-zone illumination provides illumination in one or more areas as needed to obtain the best observation results. Software Imaging; 2D/3D and Stitching imaging, image processing, Multi-area shooting. Software Measurement Features; Rapid, Cross-Field, Planar, Point Height, 3D, Contour, Particle Count, and Automatic measurement.
- Digital Microscope Full Catalog
