LEADER/PHABRIX: RASTERIZER
The RASTERIZERS are used in broadcast and video production; converting incoming SDI and IP video/audio signals into display formats providing comprehensive signal monitoring for quality control and signal analysis on external monitors
Typical Features include;
- Signal Support: SD-SDI, HD-SDI, 3G-SDI, 12G-SDI, and various IP formats (SMPTE ST 2110, ST 2022-6/7)
- Hybrid Monitoring: “True hybrid operation” allows for the simultaneous display and comparison of both SDI and IP sources side-by-side
- Measurement and Analysis Tools: Waveform monitor, Vectorscope, Audio Level meter, CIE colour charts, and status displays for error detection (eg CRC errors, frozen frames, black frames)
- Customizable Layouts: Users can create flexible, user-defined layouts, displaying up to 16 different instruments simultaneously on an external screen for efficient monitoring of multiple parameters or channels
Additionally, the remote controller LV7290 can be used to remotely control up to 8 units of waveform monitors or rasterizers via Ethernet by connecting to the ETHERNET terminal.
- Broadcast Production & Master Control Rooms (MCR): Real-time monitoring of performance parameters, compliance testing, and fault diagnosis of video and audio signals
- Post-Production: Colour used features like 3D LUT (Colour Lookup Table) support, HDR (High Dynamic Range) measurement and Wide Colour Gamut analysis to ensure consistent and accurate colour reproduction
- On-Set Production (DIT): Camera shading, focus assist (using nonlinear super-resolution technology), and quality control
- System Engineering: Analyze the physical layer of signals (eye pattern and jitter displays), measure SDI cable length attenuation, monitor IP packet status, and manage PTP synchronization in hybrid IP environments
- Research & Development: The precision and range of measurement tools make them suitable for product development and rigorous testing environments
| MODEL | FEATURES |
|---|---|
LV7600W ‘True-Hybrid’ Rasterizer |
Support variety of SDI signals up to 12G-SDI and video over IP |
Key Features: Web Real-Time Communication interface, ‘True-Hybrid’ SDI/IP Workflows, 4x IP Multi-stream, HDR Monitoring, TALLY, Video Noise Meter, Dolby®E Decoding, Focus Assist, 3D-LUT Function, Full Range SDR [1], False Colour Display |
|
Customized screen layout to solve complex measurement and monitoring tasks |
|
LV7300 Rasterizer |
Support SDI signals from SD through 12G rates and include physical layer testing |
Key Features: Focus Assist, 3D-LUT Function, HDR Monitoring, TALLY, Full Range SDR [1], False Colour Display |
|
Status display allows assess to errors and system stability with both event logs and long-term charts |
|
Audio embedded in SDI signals can be shown on the level, Lissajous, and status displays |
|
Phabrix Qx Rasterizer |
Includes tools for rapid fault diagnosis, compliance monitoring, and product development |
Key Features: HD-SDI Analysis and Monitoring, 12G Physical Layer and SDI-Stress, IP Monitoring Suite, ST 2110 Analysis, Advanced HDR Analysis, Audio and Video Generation, Dolby®E Decoder and MetaData Analyzer |
|
Offers SDI as standard. Core media analysis tools for broadcast operator HD-SDI environments include picture view, waveform analyzer, vectorscope, 32 channel audio metering and ANC status |
|
Optional IP toolset supports payloads on native 10G SFP+ interfaces using generic IP SFPs, giving full access to monitor and measure the IP traffic to SMPTE standards |
|

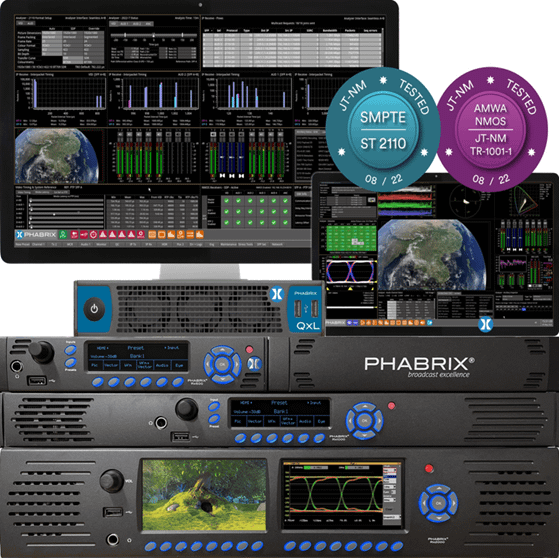

PHABRIX QxL Rasterizer |
Inherits all the JT-NM tested features of PHABRIX Qx |
Key Features: 12G Physical Layer and Stress, IP Monitoring Suite, ST 2110 Analysis, Audio and Video Generation, Dolby®E Decoder and MetaData Analyzer, Analysis and Monitoring Toolset, HDR Visualization and Analysis |
|
Real-time UHD IP workflows on 25G networks with video payloads up to 21Gbps, providing support for 2110 and 2022-6 on generic 10G/25G SFP28 interfaces |
|
Fully 10G/25G IP enabled as standard, with support for generation and analysis of a JT-NM TR 1001- 1:2018, ST 2110-20 (video), up to four 2110-30 (PCM) and 2110-31 (AES transport) audio and a 2110-40 ANC media flow, all with 2022-7 Seamless IP Protection Switching (SIPS) and AMWA [2] NMOS [3] IS-04 discovery and IS-05 device connection management |
|
PHABRIX Rx Series Rasterizer |
Advanced 2K/3G/HD/SD signal generation, analysis and monitoring for faster compliance testing and fault diagnosis of both video and audio signals |
Key Features: 99 configuration presets, Video capture and remote access, 4-channel eye and jitter analysis, AV Delay generation and analysis, and multi-channel audio analysis |
|
Monitoring workflows are optimized with ultra-flexible, user-defined instrument display layouts |
|
Up to 16 instruments can be presented simultaneously, at sizes ranging from full screen down to 1/16 screen |
|
Multi-channel environments, channel identification is simplified with a dedicated window colour per channel |
[2] AMWA: Advanced Media Workflow Association
[3] NMOS: Networked Media Open Specifications
Rasterizer Datasheet Download:
- Rasterizer LV7600W
- Rasterizer LV7300
- Rasterizer PHABRIX Qx
- Rasterizer PHABRIX QxL
- Rasterizer PHABRIX Rx
