Microscope, Microscopy

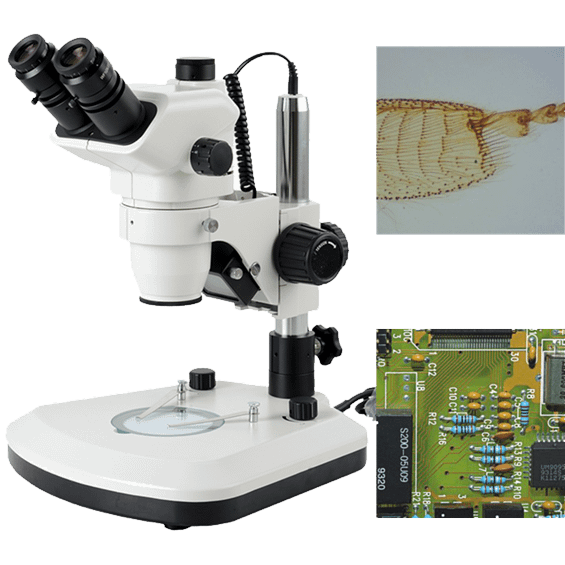

BESTSCOPE: Stereo Microscope
- A stereo microscope has two separate, side-by-side optical systems; one for each eyepiece. Each system contains its own objective lens and eyepiece, or they may share a common main objective lens with relatively low magnification, typically ranging from 5X to 100X.
- Stereo microscope uses light reflected off the surface of an opaque object. It may also be equipped with transmitted light for viewing certain transparent samples.
- Other features include long working distance enabling sufficient space for dissecting, soldering, or handling of samples under the lens.
- Refer to Datasheet of various models below.
- BS-3001 Upright Binocular Viewing Head, 10X eyepiece with diopter adjustment of ±5dp on left ocular-tube and working distance of 80mm with 2X objective. Working Plate; Φ60mm white & black plate or Φ95mm frosted glass and white & Black Plate.
- BS-3002 45° Inclined Binocular Viewing Head, 10X eyepiece with diopter adjustment of ±5dp on left ocular-tube and working distance of 80mm with 2X objective. Working Plate; Φ60mm white & black plate or Φ95mm frosted glass and white & Black Plate.
- BS-3003 45° Inclined Binocular Viewing Head, 10X eyepiece with diopter adjustment of ±5dp on left ocular-tube and working distance of 230mm with 1X objective.
- BS-3010 45° Inclined Binocular Fixed or 360° rotatable Viewing Head, 10X eyepiece and working distance of 57mm or 76mm.
- BS-3016 45° Inclined Binocular Viewing Head, high eyepoint wide field 10X eyepiece with diopter adjustment of ±5dp and working distance of 100mm with turret objectives with either 1X/3X or 2X/4X.
- BS-3020 3 types of Viewing Head configurations; 45° Inclined Binocular, 45° Inclined Trinocular, 45° Inclined Binocular with 1,3MP digital camera. Wide field eyepiece 10X with Zoom objective from 1X to 4.5X and working distance of 97mm. Wide field of View Φ20mm.
- BS-3025 45° Inclined Binocular 360° rotatable Viewing Head, high eyepoint wide field 10X eyepiece with diopter adjustment of ±5dp and working distance of 100mm. Zoom objective from 0.7X to 4.5X.
- BS-3026 45° Inclined Binocular 360° rotatable or 45° Inclined Trinocular 360° rotatable Viewing Head, high eyepoint wide field 10X eyepiece with diopter adjustment of ±5dp and working distance of 100mm. Zoom objective from 0.70X to 4.5X.
- BS-3030 Greenough Optical System. 45° Inclined Binocular 360° rotatable or 45° Inclined Trinocular 360° rotatable Viewing Head, 10X eyepiece with diopter adjustment on both eyepieces and working distance of 105mm. Zoom objective from 0.670X to 4.5X.
- BS-3035 45° Inclined Binocular or 45° Inclined Trinocular Viewing Head, wide field 10X eyepiece and working distance of 115mm. Zoom objective from 0.8X to 5X.
- BS-3036 45° Inclined Binocular or 45° Inclined Trinocular Viewing Head, high eyepoint wide field 10X eyepiece with adjustable diopter and working distance of 100mm. Zoom objective from 0.67X to 4.5X.
- BS-3040 45° Inclined Binocular or 45° Inclined Trinocular Viewing Head, wide field 10X eyepiece and working distance of 115mm. Zoom objective from 0.8X to 5X.
- BS-3042 45° Inclined Binocular or 45° Inclined Trinocular Viewing Head, high eyepoint wide field plan 10X eyepiece with adjustable diopter and working distance of 110mm. Zoom objective from 0.67X to 4.5X.
- BS-3043 Greenough Optical System. 45° Inclined Binocular or 45° Inclined Trinocular Viewing Head, wide field plan 10X eyepiece and working distance of 118mm. Zoom objective from 0.65X to 5.2X.
- BS-3044 45° Inclined Binocular Viewing Head, wide field 10X eyepiece and working distance of 115mm. Zoom objective from 0.6X to 5X.
- BS-3045 45° Inclined Trinocular Viewing Head, high eyepoint wide field plan 10X eyepiece and working distance of 115mm. Zoom objective from 0.6X to 5X.
- BS-3060 Infinite Parallel Zoom Optical System. 20° Inclined Binocular Viewing Head, wide field 10X eyepiece and working distance of 78mm. Zoom objective from 0.8X to 8X. Plan Achromatic Objective 1X.
- BS-3060F Infinity Parallel Optical System with 20° Inclined Binocular Viewing Head. Ultra hi-voltage spherical mercury lamp illumination. Wide Magnification range from 2.4X to 480X. 2 Fluorescence attachments; GFP-B and GFP-L. CCD camera can be mounted on the photo tube for image capture and analysis.
- BS-3070 Large viewing field without eyepiece; 68mm FOV (with 2X objective), 34mm FOV (with 4X objective) and 22.7mm FOV (with 6X objective). Built-in LED illumination with adjustable brightness. Working distance; 208mm (with 2X objective), 98mm (with 4X objective) and 80mm (with 6X objective).
- BS-3080 Infinite Parallel Galileo Zoom Optical System. Tilting Trinocular or 30° Inclined Trinocular Viewing Head. High eyepoint wide field plan 10X eyepiece with adjustable diopter and working distance of 80mm. Zoom range from 0.63X to 8X with built-in aperture diaphragm.
- BS-3090 Infinite Parallel Galileo Zoom Optical System. 20° Inclined Trinocular Viewing Head. High eyepoint wide field plan 10X eyepiece with adjustable diopter and working distance of 60mm. Zoom range from 0.75X to 13.5X with built-in aperture diaphragm. BS-3090F; EPI-Fluorescence attachment with 6-hole turntable fluorescence modules. Can accommodate up to five fluorescence modules and one bright field module. Four band LED light source, brightness adjustable, with B, G, U, R fluorescence filters.
- BS-3090M Motorized zoom stereo microscope with Infinite Parallel Galileo Zoom Optical System. The motorized controller can be used to control the zoom magnification, focusing and illumination brightness. LCD screen on the controller displays the working status of the microscope. 20° Inclined Trinocular Viewing Head. High eyepoint wide field plan 10X eyepiece with adjustable diopter and working distance of 60mm. Zoom range from 0.75X to 13.5X with built-in aperture diaphragm. BS-3090MF; EPI-Fluorescence attachment with 6-hole turntable fluorescence modules. Can accommodate up to five fluorescence modules and one bright field module. Four band LED light source, brightness adjustable, with B, G, U, R fluorescence filters
- Accessories for Stereo microscope
- Stereo Microscope Full Catalog
