BESTSCOPE: Monocular Microscope

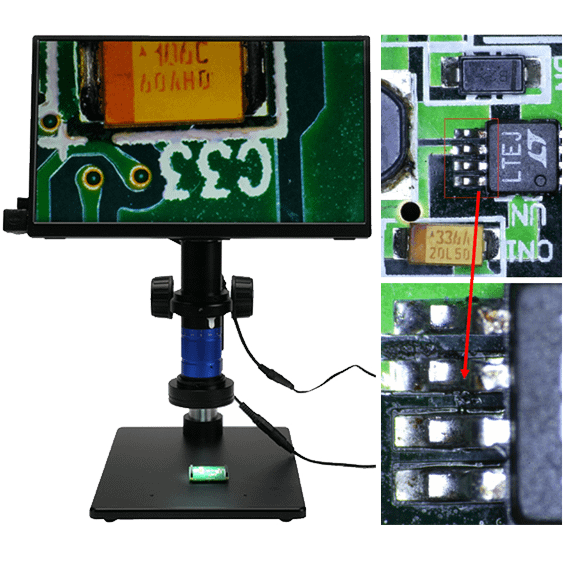

- Monocular microscope uses an objective lens (or multiple lens) and an eyepiece to produce a highly magnified, two-dimensional image.
- BESTSCOPE offers modular monocular microscope that is user configurable to meet various field applications; machine vision, inspection of PCB, IC device, materials, etc. Variety of microscope accessories include lens, illumination, eyepiece, microscope stand, C-mount and high-resolution digital camera with built-in software and HDMI interface for direct connection to a display can be selected.
- Suggested configuration and configuration guide are provided.
- Unless otherwise stated, culture vessels of different sizes are available as options.
- Refer to Datasheet of various models below.
- BS-1002 Series Zoom range from 0.7X to 4.5X with WD of 80mm. Digital model with 12MP camera and 9” LCD display.
- BS-1008 Series Semi-apochromatic parallel optical imaging system with advanced multi-layer coating technology; correct imaging on the edge of field of view. Zoom range from 0.7X to 5.6X with WD from 37.5mm to 160mm. HDMI 1080P Camera integrated with zoom lens. User configurable lens, illumination, and stand.
- BS-1035, BS-1055 Series High resolution and sharp stereoscopic images. Modular design for user configurable with various optional accessories; auxiliary lens, C-mount eyepiece adapter, ring light or coaxial light source and LCD digital camera with HDMI2.0, USB3.0 and WIFI for different applications. Zoom range from 0.7X to 5X with WD of 86mm.
- BS-1080 Series Modular, apochromatic parallel with high resolution and sharp stereoscopic image system. Zoom range from 0.6X to 5X with WD of 88mm. HDMI camera with built-in software connects directly to display.
- BS-1082 Zoom range from 0.3X to 2.5X. Optional magnification auxiliary objective 0.3X, 0.4X, 0.5X, 0.6X, 1.5X, 2X and 4K LCD digital camera with HDMI2.0, USB3.0 and WIFI.
- BS-1085 Series Modular, infinite ultra-high resolution 4K apochromatic parallel optical system. User configurable C-mount for different magnification up to 1:10 zoom ratio, lens for different working distance, illumination, nosepiece, stage stand, focusing arm and 4K LCD digital camera with HDMI2.0, USB3.0 and WIFI.
- BS-1108 Zoom range from 0.15X to 1.20X with WD of 130mm (1X auxiliary lens). User configurable illumination, stand, camera and adapter.
- BS-1110 Zoom range from 0.4X to 4.0X with WD from 56mm to 248mm. User configurable lens, illumination, stand, camera and adapter.
- BS-1115 Zoom range from 0.4X to 6.0X with WD from 56mm to 248mm. User configurable lens, illumination, stand, camera and adapter.
- BS-1120 Zoom range from 0.4X to 8.0X with WD from 86mm to 174mm. User configurable lens, illumination, stand, camera and adapter.
- BS-1210 Zoom range from 0.6X to 6.0X with WD from 56mm to 248mm. User configurable lens, illumination, stand, camera and adapter.
- BS-1310 Zoom range from 0.8X to 8.0X with WD from 56mm to 248mm. User configurable lens, illumination, stand, camera and adapter.
- Bestscope Monocular Microscope Accessories
- Monocular Microscope Full Catalog
