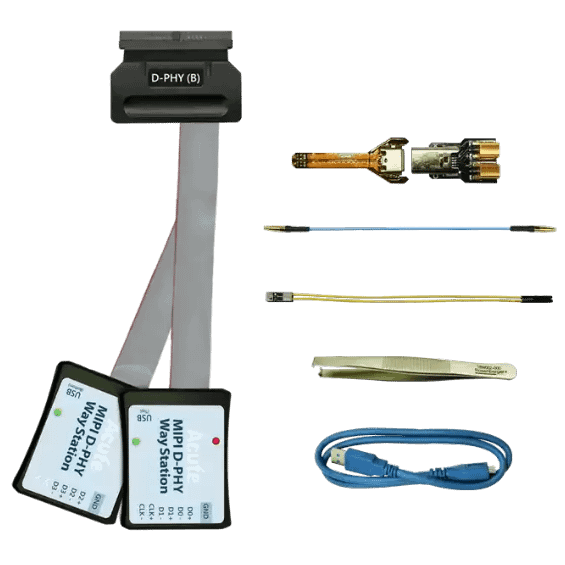

ACUTE: MIPI D-PHY Way Station (Protocol Analyzer Option)

FEATURES:

Applicable Model: BF7264 PRO
Physical Layer interface for high-speed, low-power data transmission, especially those involving cameras and displays.
Way Station: 5-Differential Pairs (CLK, D0, D1, D2, D3)
MIPI CSI & DSI Decode
Support;
- D-PHY V1.2 Up to 2.0Gbps per lane, 1 + 4 Lanes
- Data Filtering for unnecessary image data to reduce memory
- Data Search function
- ECC/CRC Packet Error counting and display
- D-PHY command statistics include number of packets, individual command, different data length and errors
- TE (Tearing Effect) Channel Detection
Display;
- CSI-2 1.3 or DSI 1.3 packet data in table, include DCS 1.3 command analysis for DSI
- DSI (CSI) image data including RGB, YCbCr, Raw format or compressed DSC packets and Porch statistics
Full capture of data from Low Power Mode Initialize to High-Speed Mode process
