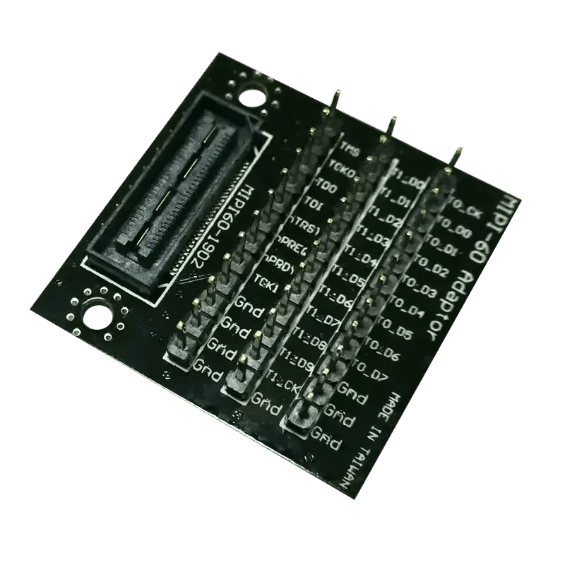

ACUTE: MIPI-60PIN Adapter (Protocol Analyzer Option)

FEATURES:

Applicable Model: LA4000 / TB3000 / MSO2000 / TL4000 series
Adapter with extended 2.54 pin header test point for supporting
Joint Test Action Group (JTAG) debug, Serial Wire Debug (SWD) and Intel CPU debug
JTAG: Standardized interface used for testing and debugging electronic circuits, including embedded processors and memory modules. Allow access to internal components of a device, enabling tasks like code debugging, testing connections, and firmware programming. Require physical access to the device’s circuit board
SWD: More efficient and simplified version of JTAG, specifically designed for ARM processors; fewer pins than JTAG (typically two: SWDIO and SWCLK), making it suitable for devices with limited pin availability
Intel CPU Debug: Upon request ONLY by users who have signed CNDA with Intel
