Electrostatic Voltmeter (ESVM)
TREK NON-CONTACT ELECTROSTATIC VOLTMETER (ESVM)
Electrostatic Voltmeter (ESVM) works on electrostatic attraction where a sensing probe or electrode is placed near the charged surface. The electrostatic field between the charged object and the probe generates a force that is pick up by the sensing probe.

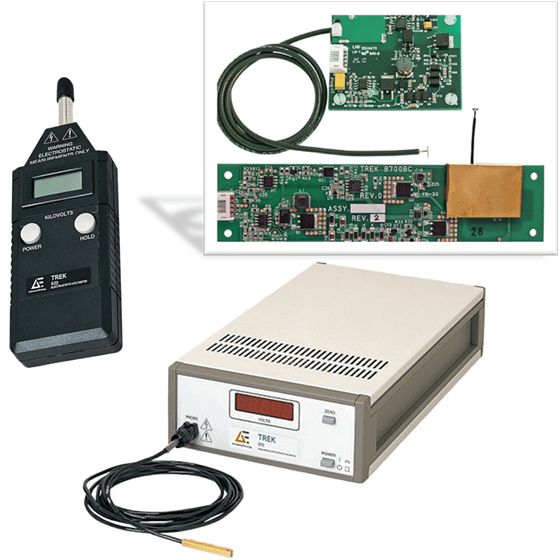

ADVANCED ENERGY’s offers Non-Contact ESVM that is crucial for sensitive applications where contact may damage or skew results and is designed for accuracy and repeatability with measurement including DC voltage, surface charge on insulating materials, and AC electric fields.
For seamless integration into manufacturing equipment, a voltmeter embedded in an on-board controller configuration is available that provides real-time electrostatic data.
ESVM is used in various applications including semiconductor manufacturing, electronics assembly, materials testing, as well as research and development.
Refer to TREK ESVM Selection Guide below
| MODEL | MEASURE RANGE | RESPONSE SPEED | P-S DISTANCE[1] | HANDHELD |
|---|---|---|---|---|
| 320C | 0 to ±100 VDC or Vpeak | < 300ms | 1mm | NO |
| 323 | 0 to ±100 VDC or Vpeak | < 300ms | 1mm to 3mm | NO |
| 325 | 0 to ±40 VDC or Vpeak | < 5ms | 0.2mm to 2mm | NO |
| 341B | 0 to ±20 kVDC or Vpeak | < 5ms | 3 mm ± 1mm | NO |
| 344 | 0 to ±2 kVDC or Vpeak | < 3ms | 2 mm ± 1mm | NO |
| 347 | 0 to ±3 kVDC or Vpeak | < 3ms | 2 mm ± 1mm | NO |
| 370 | 0 to ±3 kVDC or Vpeak | < 50us | 2 mm ± 1mm | NO |
| P0685 | 0 to ±10 kVDC or Vpeak | < 5ms | 3 mm ± 1mm | NO |
| OBC[2] | 0 to ±1.2 kVDC or Vpeak | < 5ms | CUSTOMIZED | NO |
| 520 | 520: 0 to ±2kVDC or Vpeak 523: 0 to ±20kVDC or Vpeak |
< 400ms | 5mm to 25mm | YES |
| 541A | 541A-1: 0 to ±1kVDC or Vpeak 541A-2: 0 to ±100VDC or Vpeak |
< 50ms | 2.5 mm ± 1mm | NO |
| 542A | 542A-1: 0 to ±10kVDC or Vpeak 542A-2: 0 to ±20kVDC or Vpeak |
< 50ms | 542A-1: (15 to 30) mm 542A-2: (30 to 60) mm |
NO |
| 876 | 0 to ±2 kVDC or Vpeak | - | 5mm to 25mm | YES |
| 884 | 0 to ±20 kVDC or Vpeak | - | 30mm to 60mm | YES |
[2] Customized On-Board Controller (OBC)
TREK ESVM Datasheet Download:
- ESVM 320C
- ESVM 323
- ESVM 325
- ESVM 341B
- ESVM 344
- ESVM 347
- ESVM 370
- ESVM P0865
- ESVM OBC
- ESVM 520
- ESVM 541A
- ESVM 542A
- ESVM 876 / 884
TREK ESVM Technical Notes Download:
