Resistance Measurement System, Resistivity Measurement System

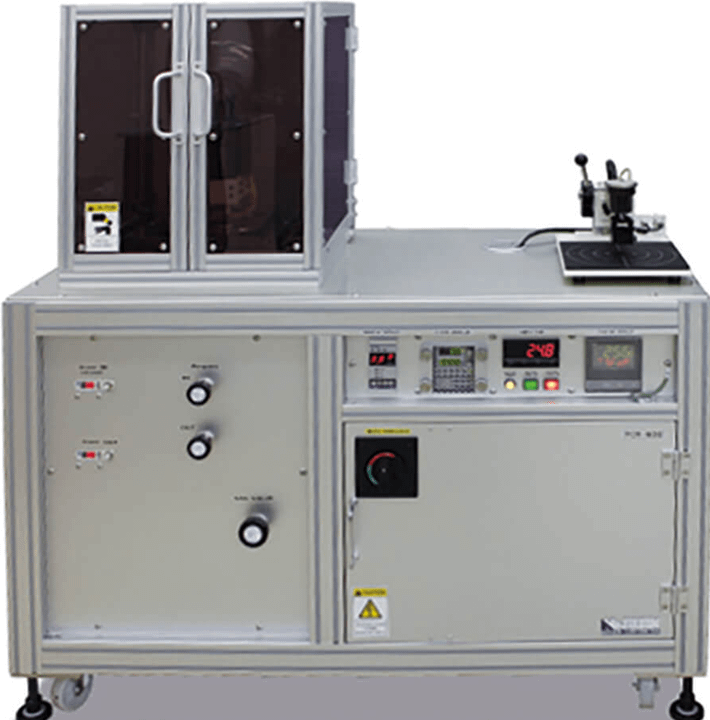

NAPSON: TEMPERATURE CONTROL SHEET RESISTANCE/RESISTIVITY MEASUREMENT SYSTEM
- Single Point, Contact Type by 4-point probe method
- Controlled Thermo-chuck (room temperature to 600 ℃, less than 20 minutes)
- 600 °C compatible probe head with 1mm linear
- Controlled with vacuum sensor, digital thermo-meter, vacuum gauge and gas flow meter
- Temperature Accuracy: ± (0.5% + 1℃)
- Measure Range (Ω.cm): 10u to 100k
- Sample Sizes:
- Ø 10mm
- 5mm x 10mm to 35mm x 35mm
- Others on request
Datasheet Download:
Technical Notes Download:
