Function/Arbitary Waveform Generator (AWG)
SIGLENT: Function / Arbitary Waveform Generator (AWG)

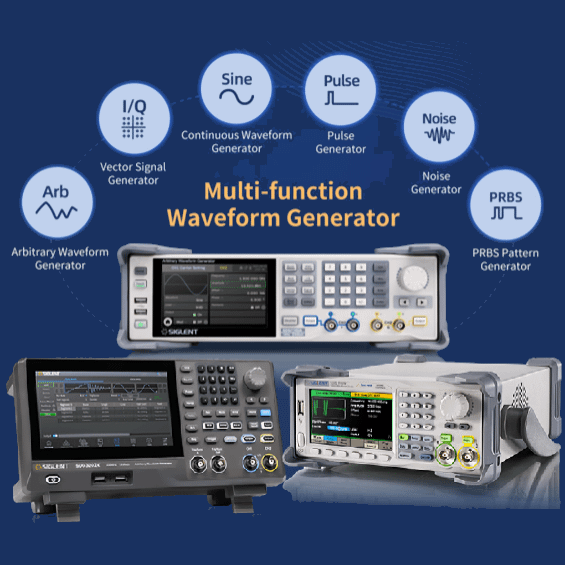

- SIGLENT Arbitrary Waveform Generators (AWG) include models with up to 500MHz bandwidth, 2.4GSa/s sample rate, 16-bit vertical resolution and 20Mpts of data.
- Common Features: Analog / Digital modulations, Sweep and Burst for complex signal generation.
- Proprietary TrueArb and EasyPulse Technology: Resolve weaknesses inherent when generating arbitrary, square and pulse waveforms. Additionally, X-series models provide true dual channels with internal waveform combination, flexible phase control, copy, coupling and tracking between channels. These features provide a variety of high fidelity and low jitter signals, meeting complex and intensive applications.
- Accessories: Attenuator, Amplifier, Rack Mount Kit, USB-GPIB Adapter (Refer to Siglent Time-Domain Accessories Catalog)
Refer to Selection Guide below
| MODEL | NO. OF CHANNELS | OUTPUT FREQUENCY | SAMPLING RATE | VERTICAL RESOLUTION | WAVEFORM LENGTH |
|---|---|---|---|---|---|
| SDG800 | 1 | 5 / 10 / 30 MHz | 125 MSa/s | 14 bits | 16 Kpts |
| SDG1000X | 2 | 30 / 60 MHz | 150 MSa/s | 14 bits | 16 Kpts |
| SDG1000X+ | 2 | 25 / 30 / 60 MHz | 1 GSa/s | 16 bits | 8 Mpts |
| SDG2000X | 2 | 40 / 80 / 120 MHz | 1.2 GSa/s | 16 bits | 8 Mpts |
| SDG3000X | 2 | 80 / 160 / 200 MHz | 1.2 GSa/s | 16 bits | 40 Mpts |
| SDG6000X | 2 | 200 / 350 / 500 MHz | 2.4 GSa/s | 16 bits | 20 Mpts |
| SDG7000A | 2 Differential (Single-Ended) | 1 GHz | 5 GSa/s | 14 bits | 512 Mpts |
AWG Datasheet Download:
- Siglent Arbitary Waveform Generator (AWG) Product Catalog
- SDG800 Series AWG
- SDG1000X Plus Series AWG
- SDG1000X Series AWG
- SDG2000X Series AWG
- SDG3000X Series AWG
- SDG6000X Series AWG
- SDG7000A Series AWG
Accessories Datasheet Download:
