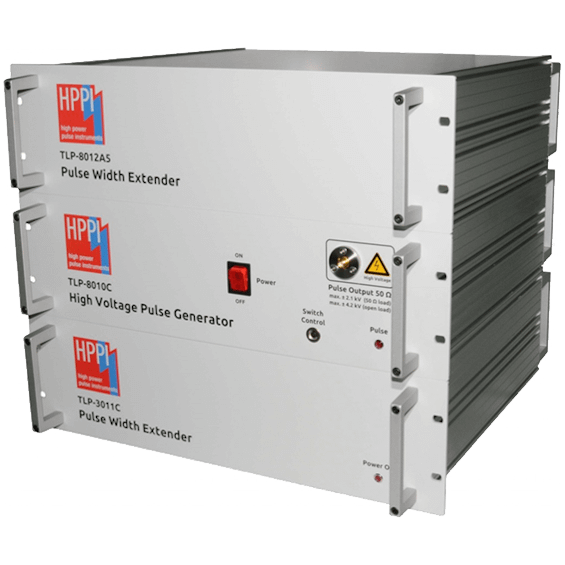

HPPI: Pulse Width Extender
- The Pulse Width Extender extends the pulse width of HPPI TLP and CMTI High Voltage Pulse Generators either to 1.6us or 500ns depending on the TLP pulse generators
- Selection of pulse width is either via the TLP software or manual depending on the TLP pulse generators
- Optional 2us pulse width upon request
- Option external rise time filter (ORTF), refer to TLP Rise Time Filter/Pulse Module for details
| MODEL | MAX. NO. OF EXTENDED PULSE WIDTH | MAX. CURRENT | APPLICABLE TLP/CMTI MODEL |
|---|---|---|---|
| TLP-3011C | Medium: 6 user-defined from 125ns to 1.6us Standard: 125ns-1.6us in 25ns step size |
±40A | TLP-3010C, TLP-4010C, TLP-8010C, TLP-12010C, TLP-16010C, CMTI-3010C, CMTI-4010C |
| TLP-8012A5 | Medium: Manual 6 user-defined from 5ns to 500ns | ±80A | TLP-8010A, TLP-8010C, CMTI-8010A, CMTI-8010C |
| TLP-12012A6 | Medium: Manual 6 user-defined from 5ns to 500ns | ±120A | TLP-12010A, TLP-12010C, CMTI-8010A, CMTI-8010C |
| TLP-16012A | Medium: Manual 6 user-defined from 5ns to 500ns | ±160A | TLP-16010A, TLP-16010C |
Datasheet Download:
