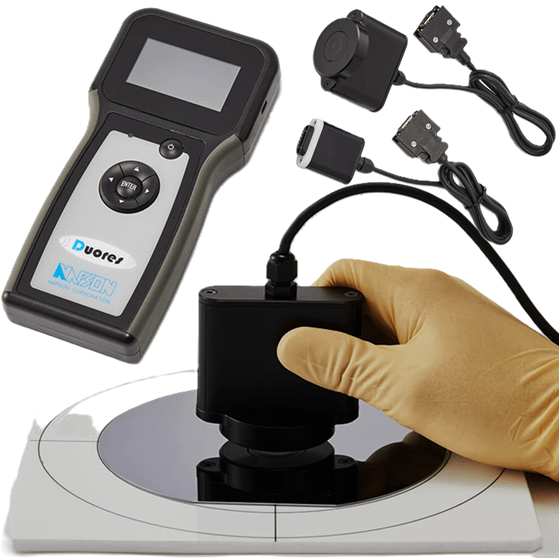

• Handheld, single point sheet resistance measurement
• NAPSON Original Technology, replaceable hand-held probes for 2 kinds of measurement methods;
• Non-Contact Type using Eddy current method
• Contact Type using 4-point probe method
• Auto-measurement start by probe head unit contact to sample
• Battery-operated mode: 24h
• Maximum 100 measurement data can be saved
• Measurement data transfer by USB-Mini port
• 4 digit floating decimal point data display
• Probe Measurement Spot Size:
• Non-Contact Type: Ø 25mm
• Contact Type (4-point probe): 9mm
• Sample Size: Any size or shape larger than the probe spot size
• Measure Range:
• Non-Contact Type: 0.5 Ω/sq to 200 Ω/sq
• Contact Type (4-point probe): 0.001 Ω/sq to 4000 Ω/sq
