Charge Plate Monitor (CPM)

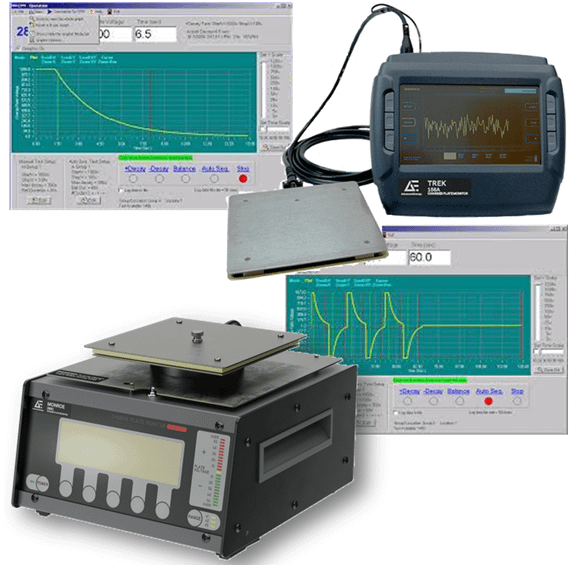

TREK/MONROE: CHARGE PLATE MONITOR (CPM)
ADVANCED ENERGY’s Charge Plate Monitors are designed to accurately evaluate air ionization systems that neutralize accumulated static charge and compliance to ANSI/ESD-STM3.1 and IEC 61340-5-1.
Applications include:
- Testing of ionizers; include room ionization systems, AC/DC blowers, nuclear ionizers, gun type and pulsed DC ionizers
- ESD monitoring of sensitive manufacturing processes for semiconductor and LCD
- Dissipative Test of Materials
Refer to CPM Selection Guide below
| PARAMETER | TREK 156A | TREK 157 | TREK 158A | MONROE 288C |
|---|---|---|---|---|
| Monitored Voltage Range | 0 to ±1.1 kVDC or Vpeak | 0 to ±1.02 kVDC or Vpeak | 0 to ±1.1 kVDC or Vpeak | 0 to ±1.1 kVDC or Vpeak |
| Bandwidth | DC to 10Hz | DC to 80Hz | DC to 80Hz | DC to 10Hz |
| Decay Start Voltage Range | 0 to ±1kV | 0 to ±1kV | 0 to ±1kV | ±10V to ±1kV |
| Decay Stop Voltage Range | 0 to ±999V | 0 to ±999V | 0 to ±999V | 0V to ±995V |
| Charge Plate Size (mm) Optional |
PN 17397: 150x150 PN 17375: 25x25 |
PN 17397: 150x150 PN 17375: 25x25 |
PN 17397: 150x150 PN 17375: 25x25 |
PN 288/22N: 3”x3” PN 288/22G: 1”x1” |
| Battery Operation | YES | YES | YES | YES |
CPM Datasheet Download:
CPM Technical Notes Download:
