BESTSCOPE: Comparison Microscope

Comparison Microscope is designed to facilitate simultaneous side-by-side observation and analysis of two samples’ properties and, or characteristics at high magnification.Two separate optical paths or viewing heads allow user to place two samples side by side. Each sample is positioned and aligned under one set of objective and eyepiece. A light source is used to illuminate and direct the light from both samples into the single eyepiece.

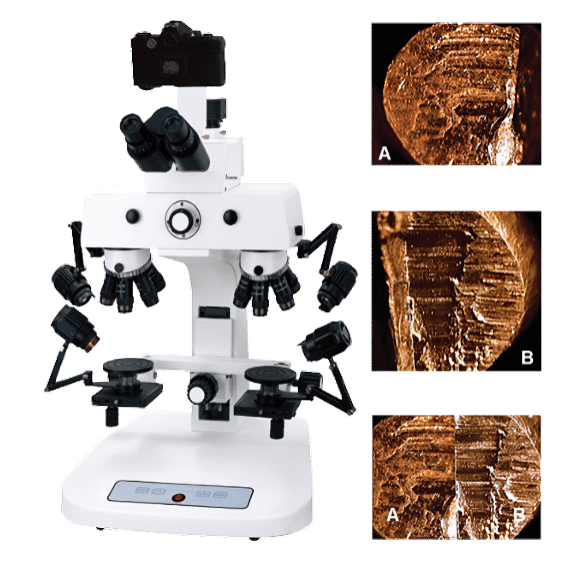

BESTSCOPE BSC-200 and BSC-300 series Comparison Microscopes are equipped with 12V/50W air-cooled lamps, large power LED lamps, Coaxial illumination device for observation of deep or small hole and smooth surface and adjustable light intensity. It uses field cutting, docking and overlapping methods where two (or more) objects can be simultaneously observed. Can be used for Single Left or Right, Overlapping, Segmentation or Jointing view of field observation. All models can be installed with optional digital camera with a C-mount adapter and image processing software that allow synchronous observation and saving of images and videos for processing and analysis.
BESTSCOPE VSC-200/300 Video Spectral Comparator is a device used for identifying alterations, covering up, fading, forgery, handwriting indentation and anti-counterfeiting hidden marks of documents. It includes a host, CCD camera, and image processing software.
Refer to Datasheet of various models below.

BSC-200 Comparison Microscope Optional Polarizing attachment for eliminating stray and glare light. Stage Size 100mm x 100mm. Total Optical Magnification: 9.6X to 115.2X
BSC-220 Comparison Microscope Optional Polarizing attachment for eliminating stray and glare light. Stage Size: 100mm x 100mm. Total Optical Magnification: 8.4X to 108X
BSC-300 Comparison Microscope Standard Polarizing attachment for eliminating stray and glare light. Stage Size: 100mm x 100mm. Total Optical Magnification: 6X to 144X
BSC-320 Comparison Microscope Standard Polarizing attachment for eliminating stray and glare light. Complete with digital cameras and image processing software that allow synchronous observation and saving of images and videos for analysis. Stage Size: 125mm x 130mm. Total Optical Magnification: 6X to 144X
VS Series Video Spectral Comparator UV long wave for visible fluorescence observation. High transmittance, narrow half width bandpass Filters: 0nm to 900nm. Reception Filters: 0nm to 900nm. High sensitivity camera with motorized zoom lens. Image processing software with static and dynamic mode for comparison in real-time.
BSC / VS Series: Comparison Microscope / Video Spectral Comparator Full Catalog
