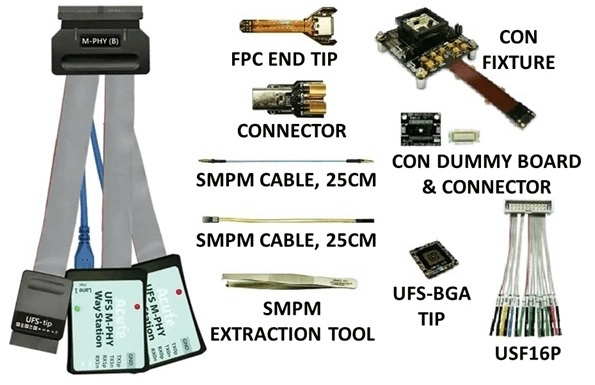

ACUTE: UFS 2.1 MIPI M-PHY Probe Interface (Protocol Analyzer Option)

FEATURES:

Applicable Model: BF7264 PRO
Universal Flash Storage 2.1 (UFS 2.1) is a high-performance storage interface with key features in high-speed data transfer and power efficiency. Primarily used in mobile devices with other applications in automotive and IoT devices
Support MIPI M-PHY 3.0; up to 5.8Gbps (Gear 3, Rate A/B), 2 Lanes
Simultaneously display Unipro or UFS protocol packet data in tabular form, including command parsing
32GB RAM buffer to stream M-PHY data into the SSD HD to record data flow from PWM to High-Speed mode
Data Filter removes unwanted data to save memory
“CRC Packet” displays and counts CRC
Unipro / UFS command statistics include numbers of packets, individual command, different data length, and errors
