ACUTE: SGMII Way Station (Protocol Analyzer Option)

FEATURES:

Applicable Model: BF7264 PRO
SGMII (Serial Gigabit Media Independent Interface) is a standard for connecting Gigabit Ethernet MAC (Media Access Control) to a PHY (Physical Layer) chip; primarily used in networking devices that require high-speed data transfer
Applications include Ethernet switches, routers, Network Interface Cards (NICs), Network-Attached Storage (NAS) and industrial automation systems

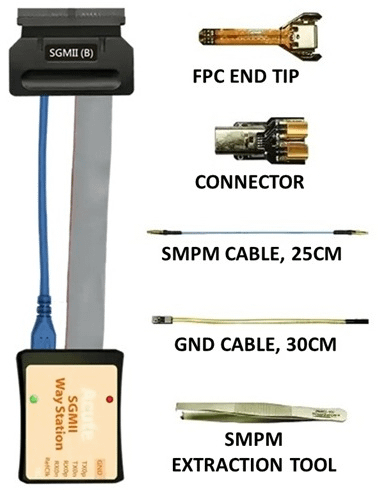

SGMII Way Station: 2-Differential Pairs (TX / RX) + 1 Ref. CLK supporting;
1Gbps / 100Mbps / 10Mbps
Ports: TXp, TXn, RXp, RXn, Ref CLK
MAC & PCS Decode
Simultaneously display PCS or GMII protocol packet data in tabular form, including command parsing
Data / Idle Filters remove unwanted/idle data to save memory
SGMII PCS & GMII statistics include numbers of packets, individual command, different data length and errors.
