ACUTE: SD3.0 / SDIO3.0 Probe Interface (Protocol Analyzer Option)

FEATURES:

Applicable Model: BF7264 PRO
0/SDIO3.0 offers high-speed data transfer and power efficiency that are used in a variety of applications, including storage, wireless communication (Wi-Fi and Bluetooth), general I/O expansion in embedded systems and mobile devices
3 Pin Mode: CMD, CLK, D0; for analysis of CMD and BUSY waveform data; only need to connect CLK, CMD and D0 pins to measure CMD data
No CLK Mode: For long duration recording of CMD waveform data, only need to connect CMD pin and perform CMD analysis with transitional storage mode
Support SD3.0, SD6.0, SDIO3.0, SDR104, DDR200, Command Queue
Auto Data Phase Tuning

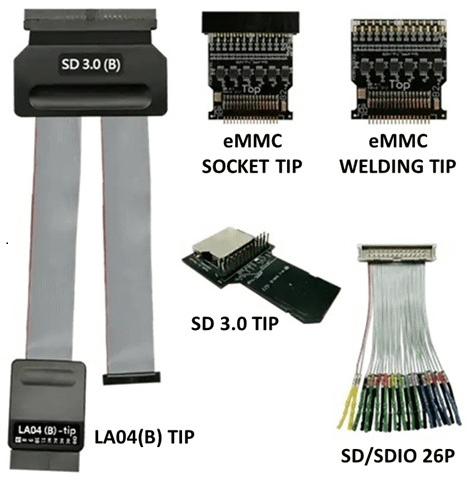

LA04 (B)-TIP x 1: 4 Data Channel
SD3.0 (SDIO 3.0)-TIP: 12 Data Channel + 2 Analog Channel
