Logic Analyzer, Protocol Analyzer
ACUTE: NAND FLASH Probe Interface (Protocol Analyzer Option)
FEATURES:
- Applicable Model: BF7264 PRO, LA4068B, LA4136B
- NAND flash protocols are used in various applications due to cost-effectiveness, high capacity and ability to retain data even without power. Applications include solid-state drives (SSDs), USB flash drives, memory cards, smartphones, digital cameras and other embedded systems
- Support Data (I/O) pin: x8, x16
- Support ONFI 4.1(NV-DDR3), Mode 8 / Toggle DDR 2.0 ~267MHz
- Supported IC: Hynix, Intel Micron, Samsung, ST, Toshiba, Winbond, Macronix, Cypress (Spansion), ONFI, Dosilicon, ESMT, Zetta, GigaDevice, etc

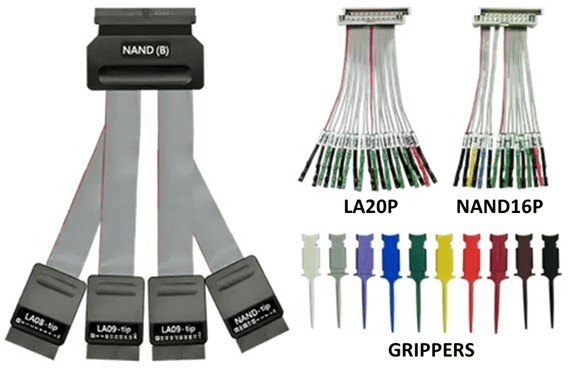

- LA08-TIP x 1: 8 Data Channel
- LA09-TIP x 2: 8 Data Channel + 1 CLK Channel
- NAND-TIP: 4 Data Channel + 2 Analog
- LA20P x 3, NAND16P x 1, GRIPPERS x 40
