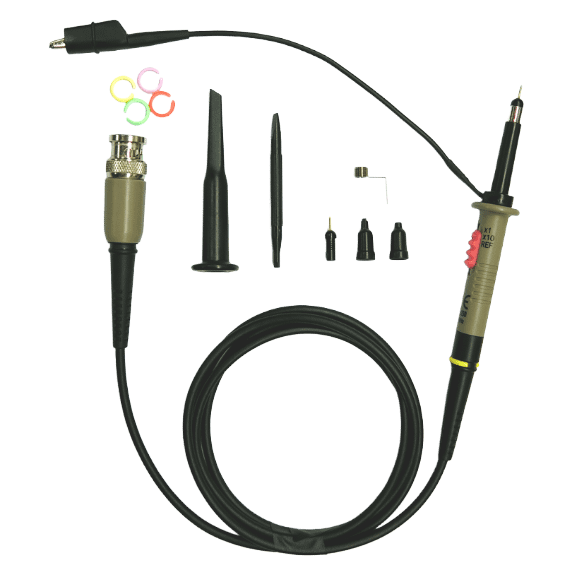

ACUTE: GBDSO250XNAA DSO Probe
FEATURES:
- Passive High Impedance Oscilloscope Probe: For use with Oscilloscope having an input impedance of 1MΩ and input capacitance of 10pF to 35pF
- The probe incorporates a 3-position slide switch which selects attenuation of X1, X10 or Ground Reference position
- Attenuation: 1X / 10X
- Bandwidth:
- 1X: DC to 6MHz
- 10X: DC to 250MHz
- Input Impedance:
- 1X: 1MΩ
- 10X: 10MΩ
- Maximum Voltage: 600V
- Ground Reference Position: Probe tip grounded via 9MΩ resistor, oscilloscope input grounded
