Optical Power Meter

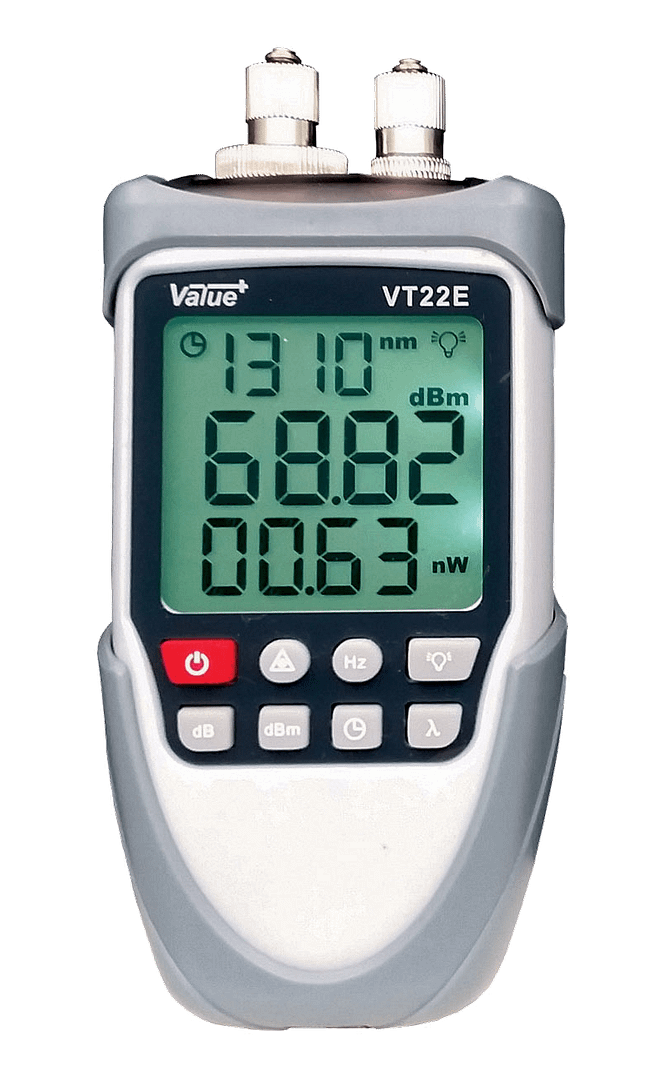

Value+ Optical Power Meters VT22E
Price
SGD 59.95 Inclusive of GST
Value+ VT22E is an affordable handheld InGaAs Optical Power Meter
featuring 7 calibrated wavelengths (850, 980, 1300, 1310, 1490, 1550, 1620)nm,
designed for measuring optical power and fiber loss in network maintenance.
Features
- Inspect optical fiber capabilities
- Calculate relative power loss
- Locate fault and troubleshooting
- Linear indicators (mW) and non-linear indicators (dBm) display in one screen
- With Visible Laser Beam, to have visual fault checking of optical fibre
- Auto Power Off function
| MODEL | VT22E |
|---|---|
| Wavelength (nm) | 850, 980, 1300, 1310, 1490, 1550, 1620 |
| Detector type | InGaAs |
| Power measurement range | -70 ~ 6 dBm |
| Power measurement accuracy | ±0.3 (5%) |
| Resolution | 0.01 |
| Optical connector (for Power Measurement) | 2.5mm ST, SC, FC |
| Red visible laser | Yes |
| Laser output | >10mW |
| Powered by | 1.5V (AA) x3 (Not Included) |
