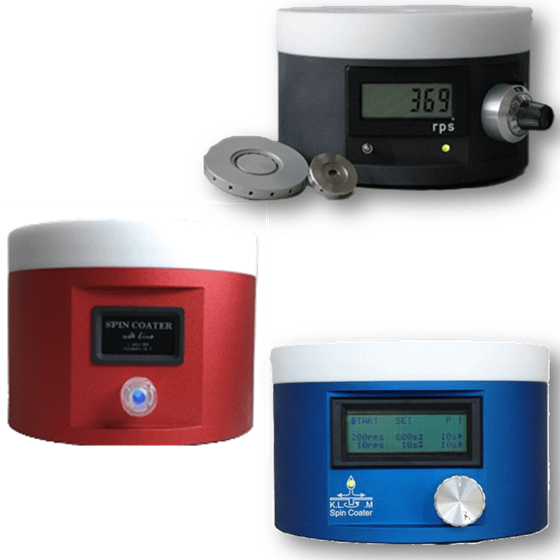

NOVOCONTROL spin coaters prepare thin films easily within a few minutes. The spin coaters consist of an exchangeable chuck driven by a high-speed electronic speed control motor and an optional vacuum pump.

Both circular and rectangular substrates can be placed on the chuck where they are held in position by the pressure below the substrate created either by a small pump (SCE-150 and SCC-200 models) or by the centrifugal force during rotation (SCI series models).

The thickness of the film merely depends on the solid/solvent concentration, rotational speed, and time. By applying rotational speeds up to 18.000 rpm, thin and ultra-thin layers of extraordinary homogeneity can be achieved. A built-in digital indicator displays exactly the rotation speed for testing under reproducible conditions.

The ergonomic design makes theses spin coaters efficient tools for the preparation of thin films of organic and inorganic substances for microscopic or spectroscopic investigations.

Typical configuration comprises of the following components;

• Models SCI-225, SCE-150 and SCC-200 include the spin coater and a switching power supply module (100V to 240VAC, 50/60Hz)
• For the SCI model, the sample substrate size needs to match the rotational platform inner diameter
• Rotational platforms to be ordered separately and are available with customized inner diameters from 10mm to 40mm
• Models SCC-200, SCE-150 and SCR include one rotational platform of 30mm diameter. A 90mm diameter platform is optionally available
• For models SCC-200, SCR and SCE-150, a vacuum pump is required. The MVP pump is recommended.

PN: MVP
Vacuum pump option for SCE-150 and SCC-200 spin coaters
Under Pressure: -33.3 kPa
Flow: 7 litres/min
Noise Level: 40 dB(A)
